ticklEcharts 3.2.8

홈페이지: https://github.com/nico-robert/ticklecharts

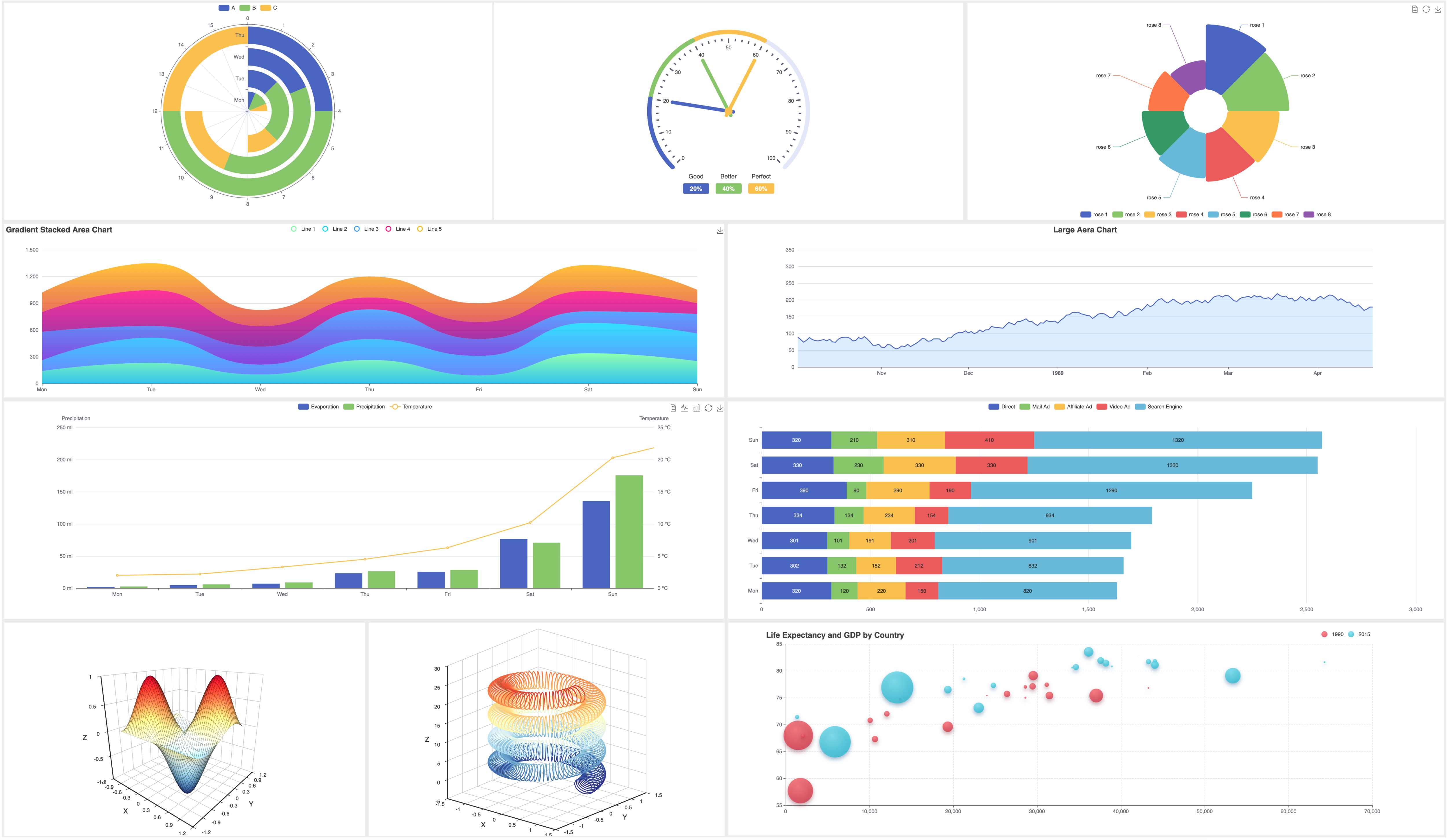

Apache ECharts 를 Tcl로 바인딩한 패키지 입니다.



# line + bar on same canvas.
package require ticklecharts

# Initializes a new 2D Chart Class.
set chart [ticklecharts::chart new]

# Set options
$chart SetOptions -tooltip {show True trigger "axis" axisPointer {type "cross" crossStyle {color "#999"}}} \
                  -grid {left "3%" right "4%" bottom "3%" containLabel "True"} \
                  -legend {}

$chart Xaxis -data [list {"Mon" "Tue" "Wed" "Thu" "Fri" "Sat" "Sun"}] \
             -axisPointer {type "shadow"}

# Encapsulates the string with braces + quotes or use 'ticklecharts::eString'
# class for 'formatter' property (See '# string template' section).
$chart Yaxis -name "Precipitation" -position "left" -min 0 -max 250 -interval 50 \
                                   -axisLabel {formatter {"{value} ml"}}
$chart Yaxis -name "Temperature"   -position "right" -min 0 -max 25  -interval 5 \
                                   -axisLabel [list formatter [new estr "{value} °C"]]

# Add bars series.
$chart Add "barSeries" -name "Evaporation" \
                       -data [list {2.0 4.9 7.0 23.2 25.6 76.7 135.6 162.2 32.6 20.0 6.4 3.3}]

$chart Add "barSeries" -name "Precipitation" \
                       -data [list {2.6 5.9 9.0 26.4 28.7 70.7 175.6 182.2 48.7 18.8 6.0 2.3}]

# Add line series.
$chart Add "lineSeries" -name "Temperature" \
                        -yAxisIndex 1 \
                        -data [list {2.0 2.2 3.3 4.5 6.3 10.2 20.3 23.4 23.0 16.5 12.0 6.2}]

# Output
$chart Render

ticklecharts-3.2.8.tar.gz

18.02MB
