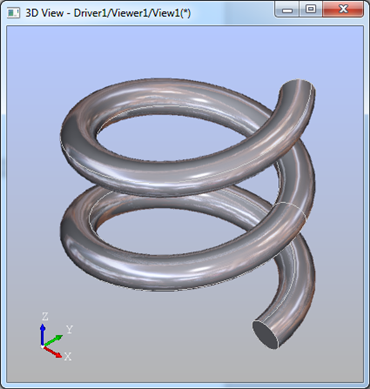

OpenCASCADE 로 Spring 형상 만드는 방법..

Make Helix Shape.pdf
1.17MB



아래는 tcl 코드..

#
# make helix torus(Ring Type Spring) in OpenCASCADE.
# Shing Liu(eryar@163.com)
# 2016-02-20 21:00
#

pload MODELING VISUALIZATION

# use torus surface.
torus aTorus 10 2

set aSlope 0.05
line aLine2d 0 0 $aSlope 1
trim aSegment aLine2d 0 2*pi

# make edge by the pcurve.
mkedge aHelixEdge aSegment aTorus 0 2*pi/$aSlope

# there is no curve 3d in the pcurve edge.
# so need this to approximate one.
mkedgecurve aHelixEdge 0.01

wire aHelixWire aHelixEdge

# make the profile.
circle aProfile 12 0 0 1 1 1 0.3
mkedge aProfile aProfile
wire aProfile aProfile
mkplane aProfile aProfile

# display the profile.
vdisplay aProfile aHelixEdge

# loft the circle along the helix curve.
pipe aSpring aHelixWire aProfile

# display the result.
vdisplay aSpring
#vsetmaterial aSpring steel
vsetgradientbg 180 200 255 180 180 180 2
vsetdispmode 1
vzbufftrihedron

set ray tracing
if { ! [catch {vrenderparams -raytrace -shadows -reflections -fsaa -rayDepth 5}] } {
  vtextureenv on 1
}



아래는 c++ 로 바꾼 코드.. (출처: https://github.com/eryar/occQt/blob/master/occQt.cpp)

void occQt::testHelix()
{
    makeCylindricalHelix();

    makeConicalHelix();

    makeToroidalHelix();
}

void occQt::makeCylindricalHelix()
{
    Standard_Real aRadius = 3.0;
    Standard_Real aPitch = 1.0;

    // the pcurve is a 2d line in the parametric space.
    gp_Lin2d aLine2d(gp_Pnt2d(0.0, 0.0), gp_Dir2d(aRadius, aPitch));

    Handle(Geom2d_TrimmedCurve) aSegment = GCE2d_MakeSegment(aLine2d, 0.0, M_PI * 2.0).Value();

    Handle(Geom_CylindricalSurface) aCylinder = new Geom_CylindricalSurface(gp::XOY(), aRadius);

    TopoDS_Edge aHelixEdge = BRepBuilderAPI_MakeEdge(aSegment, aCylinder, 0.0, 6.0 * M_PI).Edge();

    gp_Trsf aTrsf;
    aTrsf.SetTranslation(gp_Vec(0.0, 120.0, 0.0));
    BRepBuilderAPI_Transform aTransform(aHelixEdge, aTrsf);

    Handle(AIS_Shape) anAisHelixCurve = new AIS_Shape(aTransform.Shape());

    myOccView->getContext()->Display(anAisHelixCurve, Standard_True);

    // sweep a circle profile along the helix curve.
    // there is no curve3d in the pcurve edge, so approx one.
    BRepLib::BuildCurve3d(aHelixEdge);

    gp_Ax2 anAxis;
    anAxis.SetDirection(gp_Dir(0.0, 4.0, 1.0));
    anAxis.SetLocation(gp_Pnt(aRadius, 0.0, 0.0));

    gp_Circ aProfileCircle(anAxis, 0.3);

    TopoDS_Edge aProfileEdge = BRepBuilderAPI_MakeEdge(aProfileCircle).Edge();
    TopoDS_Wire aProfileWire = BRepBuilderAPI_MakeWire(aProfileEdge).Wire();
    TopoDS_Face aProfileFace = BRepBuilderAPI_MakeFace(aProfileWire).Face();

    TopoDS_Wire aHelixWire = BRepBuilderAPI_MakeWire(aHelixEdge).Wire();

    BRepOffsetAPI_MakePipe aPipeMaker(aHelixWire, aProfileFace);

    if (aPipeMaker.IsDone())
    {
        aTrsf.SetTranslation(gp_Vec(8.0, 120.0, 0.0));
        BRepBuilderAPI_Transform aPipeTransform(aPipeMaker.Shape(), aTrsf);

        Handle(AIS_Shape) anAisPipe = new AIS_Shape(aPipeTransform.Shape());
        anAisPipe->SetColor(Quantity_NOC_CORAL);
        myOccView->getContext()->Display(anAisPipe, Standard_True);
    }
}

/**
 * make conical helix, it is the same as the cylindrical helix,
 * the only different is the surface.
 */
void occQt::makeConicalHelix()
{
    Standard_Real aRadius = 3.0;
    Standard_Real aPitch = 1.0;

    // the pcurve is a 2d line in the parametric space.
    gp_Lin2d aLine2d(gp_Pnt2d(0.0, 0.0), gp_Dir2d(aRadius, aPitch));

    Handle(Geom2d_TrimmedCurve) aSegment = GCE2d_MakeSegment(aLine2d, 0.0, M_PI * 2.0).Value();

    Handle(Geom_ConicalSurface) aCylinder = new Geom_ConicalSurface(gp::XOY(), M_PI / 6.0, aRadius);

    TopoDS_Edge aHelixEdge = BRepBuilderAPI_MakeEdge(aSegment, aCylinder, 0.0, 6.0 * M_PI).Edge();

    gp_Trsf aTrsf;
    aTrsf.SetTranslation(gp_Vec(18.0, 120.0, 0.0));
    BRepBuilderAPI_Transform aTransform(aHelixEdge, aTrsf);

    Handle(AIS_Shape) anAisHelixCurve = new AIS_Shape(aTransform.Shape());

    myOccView->getContext()->Display(anAisHelixCurve, Standard_True);

    // sweep a circle profile along the helix curve.
    // there is no curve3d in the pcurve edge, so approx one.
    BRepLib::BuildCurve3d(aHelixEdge);

    gp_Ax2 anAxis;
    anAxis.SetDirection(gp_Dir(0.0, 4.0, 1.0));
    anAxis.SetLocation(gp_Pnt(aRadius, 0.0, 0.0));

    gp_Circ aProfileCircle(anAxis, 0.3);

    TopoDS_Edge aProfileEdge = BRepBuilderAPI_MakeEdge(aProfileCircle).Edge();
    TopoDS_Wire aProfileWire = BRepBuilderAPI_MakeWire(aProfileEdge).Wire();
    TopoDS_Face aProfileFace = BRepBuilderAPI_MakeFace(aProfileWire).Face();

    TopoDS_Wire aHelixWire = BRepBuilderAPI_MakeWire(aHelixEdge).Wire();

    BRepOffsetAPI_MakePipe aPipeMaker(aHelixWire, aProfileFace);

    if (aPipeMaker.IsDone())
    {
        aTrsf.SetTranslation(gp_Vec(28.0, 120.0, 0.0));
        BRepBuilderAPI_Transform aPipeTransform(aPipeMaker.Shape(), aTrsf);

        Handle(AIS_Shape) anAisPipe = new AIS_Shape(aPipeTransform.Shape());
        anAisPipe->SetColor(Quantity_NOC_DARKGOLDENROD);
        myOccView->getContext()->Display(anAisPipe, Standard_True);
    }
}

void occQt::makeToroidalHelix()
{
    Standard_Real aRadius = 1.0;
    Standard_Real aSlope = 0.05;

    // the pcurve is a 2d line in the parametric space.
    gp_Lin2d aLine2d(gp_Pnt2d(0.0, 0.0), gp_Dir2d(aSlope, 1.0));

    Handle(Geom2d_TrimmedCurve) aSegment = GCE2d_MakeSegment(aLine2d, 0.0, M_PI * 2.0).Value();

    Handle(Geom_ToroidalSurface) aCylinder = new Geom_ToroidalSurface(gp::XOY(), aRadius * 5.0, aRadius);

    TopoDS_Edge aHelixEdge = BRepBuilderAPI_MakeEdge(aSegment, aCylinder, 0.0, 2.0 * M_PI / aSlope).Edge();

    gp_Trsf aTrsf;
    aTrsf.SetTranslation(gp_Vec(45.0, 120.0, 0.0));
    BRepBuilderAPI_Transform aTransform(aHelixEdge, aTrsf);

    Handle(AIS_Shape) anAisHelixCurve = new AIS_Shape(aTransform.Shape());

    myOccView->getContext()->Display(anAisHelixCurve, Standard_True);

    // sweep a circle profile along the helix curve.
    // there is no curve3d in the pcurve edge, so approx one.
    BRepLib::BuildCurve3d(aHelixEdge);

    gp_Ax2 anAxis;
    anAxis.SetDirection(gp_Dir(0.0, 0.0, 1.0));
    anAxis.SetLocation(gp_Pnt(aRadius * 6.0, 0.0, 0.0));

    gp_Circ aProfileCircle(anAxis, 0.3);

    TopoDS_Edge aProfileEdge = BRepBuilderAPI_MakeEdge(aProfileCircle).Edge();
    TopoDS_Wire aProfileWire = BRepBuilderAPI_MakeWire(aProfileEdge).Wire();
    TopoDS_Face aProfileFace = BRepBuilderAPI_MakeFace(aProfileWire).Face();

    TopoDS_Wire aHelixWire = BRepBuilderAPI_MakeWire(aHelixEdge).Wire();

    BRepOffsetAPI_MakePipe aPipeMaker(aHelixWire, aProfileFace);

    if (aPipeMaker.IsDone())
    {
        aTrsf.SetTranslation(gp_Vec(60.0, 120.0, 0.0));
        BRepBuilderAPI_Transform aPipeTransform(aPipeMaker.Shape(), aTrsf);

        Handle(AIS_Shape) anAisPipe = new AIS_Shape(aPipeTransform.Shape());
        anAisPipe->SetColor(Quantity_NOC_CORNSILK1);
        myOccView->getContext()->Display(anAisPipe, Standard_True);
    }
}
