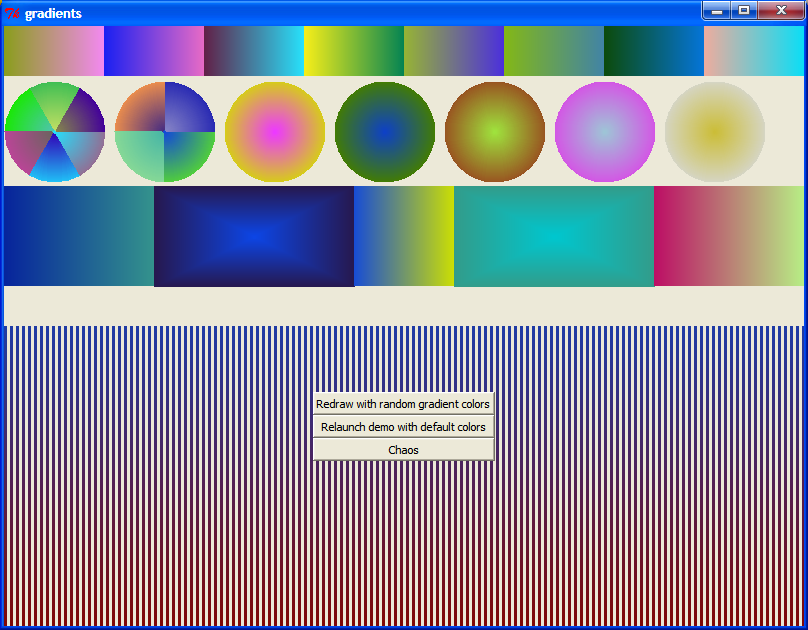

아래의 스크립트는 캔바스 위젯에 그라디언트를 구현한 코드입니다.
# Create color gradients of various shapes and sizes on a canvas.
# Usage:
# gradient draw <canvas> <tags> <x> <y> <width> <height> <vertical|horizontal|circular|central|arc> <color1> <color2> ?-animate? ?option? ...
# gradient redraw <canvas> <tags> <x> <y> <width> <height> <vertical|horizontal|circular|central|arc> <color1> <color2> ?-animate? ?option? ...
# gradient resize <canvas> <tags> <x> <y> <width> <height>
# gradient recolor <canvas> <tags> <color1> <color2>
namespace eval gradient {
namespace ensemble create -subcommands {
draw
redraw
recolor
resize
demo
}
# Create a gradient on a canvas. The gradient will be placed at the top of the display list.
proc draw {canvas tags x y width height orient color1 color2 args} {
# Ensure valid colors are provided while also converting to lists of 16-bit RGB values.
if { [catch {winfo rgb . $color1} rgb1] } {
error "invalid color: $color1"
}
if { [catch {winfo rgb . $color2} rgb2] } {
error "invalid color: $color2"
}
# Delete the gradient if it already exists.
$canvas delete [join $tags &&]
# Create a hidden canvas item to store meta data about this gradient.
set meta_data [list x $x y $y width $width height $height orient $orient color1 $color1 color2 $color2 args $args]
$canvas create line $x $y $x $y -state hidden -tags [list {*}$tags meta [list gradient: {*}$meta_data]]
# Intercept the -animate option.
if { "-animate" in $args} {
set index [lsearch $args "-animate"]
set args [lreplace $args $index $index]
set animate 1
} else {
set animate 0
}
# Draw the gradient.
if { $orient eq "central" } {
# Create the canvas rectangle items.
foreach {x1 y1 x2 y2 color} [get_rects $x $y $width $height $rgb1 $rgb2] {
$canvas create rectangle $x1 $y1 $x2 $y2 -outline $color -width 2 -tags $tags {*}$args
if {$animate} {update}
}
} elseif { $orient eq "circular" } {
# Create the canvas oval items.
foreach {x1 y1 x2 y2 color} [get_rects $x $y $width $height $rgb1 $rgb2] {
$canvas create oval $x1 $y1 $x2 $y2 -outline $color -width 2 -tags $tags {*}$args
if {$animate} {update}
}
} elseif { $orient eq "arc" } {
# Create the canvas arc items.
foreach {x1 y1 x2 y2 color} [get_rects $x $y $width $height $rgb1 $rgb2] {
$canvas create arc $x1 $y1 $x2 $y2 -outline $color -width 2 -tags $tags -style arc {*}$args
if {$animate} {update}
}
} elseif { $orient in [list "vertical" "horizontal"] } {
# Create the canvas line items.
foreach {x1 y1 x2 y2 color} [get_lines $x $y $width $height $orient $rgb1 $rgb2] {
$canvas create line $x1 $y1 $x2 $y2 -fill $color -tags $tags -capstyle projecting {*}$args
if {$animate} {update}
}
} else {
# Delete the meta data and throw an error.
$canvas delete [join $tags &&]
error "invalid orientation: $orient; must be: vertical, horizontal, circular, central, or arc"
}
return
}
# Same as draw, but if the gradient already exists then it will retain its position in the canvas's display list after being redrawn.
proc redraw {canvas tags x y width height orient color1 color2 args} {
# If the gradient already exists, remember its location in the display list.
set item_above [$canvas find above [join $tags &&]]
# Draw the gradient.
draw $canvas $tags $x $y $width $height $orient $color1 $color2 {*}$args
# Move the gradient to its previous location in the display list, if any.
if { $item_above ne "" } {
$canvas lower [join $tags &&] $item_above
}
return
}
# Shortcut procedure to change the colors of the gradient. Same as redraw but introspectively determines some meta data.
# This will use the gradient's x/y location when it was last drawn.
proc recolor {canvas tags color1 color2} {
# Retrieve the gradient's meta data.
set meta [get_meta_data $canvas $tags]
set meta [dict remove $meta color1 color2]
dict with meta {}
# Redraw the gradient with the new colors.
redraw $canvas $tags $x $y $width $height $orient $color1 $color2 {*}$args
return
}
# Shortcut procedure to resize and reposition a gradient. Same as redraw but introspectively determines some meta data.
proc resize {canvas tags x y width height} {
# Retrieve the gradient's meta data.
set meta [get_meta_data $canvas $tags]
set meta [dict remove $meta x y width height]
dict with meta {}
# Recreate the canvas lines with the new dimensions.
redraw $canvas $tags $x $y $width $height $orient $color1 $color2 {*}$args
return
}
# Retrieve meta information on a gradient.
proc get_meta_data {canvas tags} {
if { [string is integer -strict $tags] } {
# This is supposedly a canvas item ID instead of a list of tags describing a gradient. Avoid introducing subtle logic errors.
error "cannot provide canvas item ID in lieu of gradient tags: $tags"
}
# This is a list of tags for a gradient. Find the hidden meta item for this gradient.
set all_tags [$canvas gettags "meta&&[join $tags &&]"]
set meta_data [lrange [lsearch -inline -index 0 $all_tags "gradient:"] 1 end]
if { [llength $meta_data] == 0 } {
error "cannot find meta data for gradient with tags: $tags"
}
return $meta_data
}
# For a canvas item ID, return all tags that are not gradient meta tags.
proc get_non_meta_tags {canvas id} {
set tags [$canvas gettags $id]
set index [lsearch $tags "meta"]
set tags [lreplace $tags $index $index]
set index [lsearch -index 0 $tags "gradient:"]
set tags [lreplace $tags $index $index]
return $tags
}
# Calculate a list of center-to-outward colored rectangles suitable for [canvas create rectangle] or [canvas create oval].
proc get_rects {x y width height rgb1 rgb2} {
set rects [list]
set x1 [expr {int($x)+1}]
set y1 [expr {int($y)+1}]
set x2 [expr {$x1+$width-1}]
set y2 [expr {$y1+$height-1}]
# Calculate each rectangle.
if { $width > $height } {
# Decrement X by one pixel in both directions. Decrement Y by a fraction in both directions.
# The Y axis will be more heavily concentrated.
set ratio [expr { 1.0*$height/$width }]
set length [expr { $width/2 }]
while { $x2 > $x1 } {
lappend rects $x1 $y1 $x2 $y2 [get_color $rgb1 $rgb2 $length [expr { ($x2-$x1)/2 }]]
set x1 [expr { $x1+1 }]
set x2 [expr { $x2-1 }]
set y1 [expr { $y1+$ratio }]
set y2 [expr { $y2-$ratio }]
}
} else {
# Decrement Y by one pixel in both directions. Decrement X by a fraction in both directions.
# The X axis will be more heavily concentrated (unless width==height).
set ratio [expr { 1.0*$width/$height }]
set length [expr { $height/2 }]
while { $y2 > $y1 } {
lappend rects $x1 $y1 $x2 $y2 [get_color $rgb1 $rgb2 $length [expr { ($y2-$y1)/2 }]]
set x1 [expr { $x1+$ratio }]
set x2 [expr { $x2-$ratio }]
set y1 [expr { $y1+1 }]
set y2 [expr { $y2-1 }]
}
}
return $rects
}
# Calculate a list of left-to-right or top-to-bottom colored lines suitable for [canvas create line].
proc get_lines {x1 y1 width height orient rgb1 rgb2} {
set lines [list]
set x1 [expr {int($x1)}]
set y1 [expr {int($y1)}]
set x2 [expr {$x1+$width}]
set y2 [expr {$y1+$height}]
if { $orient eq "vertical" } {
# Calculate the color for each horizontal line.
for {set y $y1} {$y < $y2} {incr y} {
lappend lines $x1 $y $x2 $y [get_color $rgb1 $rgb2 $height [expr {$y-$y1}]]
}
} elseif { $orient eq "horizontal" } {
# Calculate the color for each vertical column.
for {set x $x1} {$x < $x2} {incr x} {
lappend lines $x $y1 $x $y2 [get_color $rgb1 $rgb2 $width [expr {$x-$x1}]]
}
} else {
error "invalid orientation: $orient; must be: vertical or horizontal"
}
return $lines
}
# Calculates the color at the specified index between rgb1 and rgb2 where rgb1 and rgb2 are the specified length apart.
proc get_color {rgb1 rgb2 length index} {
# Throw an error if the index is out of bounds.
if { $index < 0 || $index >= $length } {
error "index $index is out of bounds for length $length"
}
lassign $rgb1 r1 g1 b1
lassign $rgb2 r2 g2 b2
# Determine the ratio between each starting component color and ending component color.
set r_ratio [expr { 1.00*($r2-$r1+1)/$length }]
set g_ratio [expr { 1.00*($g2-$g1+1)/$length }]
set b_ratio [expr { 1.00*($b2-$b1+1)/$length }]
# Calculate the new component colors at the given index.
set r [expr { int($r_ratio*$index+$r1) }]
set g [expr { int($g_ratio*$index+$g1) }]
set b [expr { int($b_ratio*$index+$b1) }]
# A hacky workaround to make up for a lack of precision (or faulty math?).
# The final pixel of the gradient should exactly match the color of rgb2
if { $index == [expr {$length-1}] } {
lassign $rgb2 r g b
}
# Convert the integer RGB values to a hex color.
return [rgb_to_hex [list $r $g $b]]
}
# Convert a list of 16-bit RGB values to an 8-bit hex color. Using 8-bit hex colors instead of 16-bit
# speeds up drawing of images two-fold (I haven't benchmarked this for canvases).
proc rgb_to_hex {rgb} {
lassign $rgb r g b
set r [format %02x [expr {$r/256}]]
set g [format %02x [expr {$g/256}]]
set b [format %02x [expr {$b/256}]]
return #$r$g$b
}
# Converts 8-bit RGB values to 16-bit RGB values.
proc rgb_8_to_16_bit {rgb} {
lassign $rgb r g b
return [list [expr {$r*256}] [expr {$g*256}] [expr {$b*256}]]
}
# Returns a random 8-bit hex color.
proc random_color {} {
return [rgb_to_hex "[expr {int(rand()*65536)}] [expr {int(rand()*65536)}] [expr {int(rand()*65536)}]"]
}
# Redraw all gradients with random colors
proc randomize_all_gradient_colors {canvas} {
foreach id [$canvas find withtag meta] {
set tags [get_non_meta_tags $canvas $id]
recolor $canvas $tags [random_color] [random_color]
}
return
}
# Randomize colors for all canvas items.
proc randomize_all_canvas_item_colors {canvas} {
foreach id [$canvas find withtag all] {
if { [$canvas type $id] in {window} } {
continue
}
$canvas itemconfigure $id -fill [random_color]
if { [$canvas type $id] in {rectangle arc oval} } {
$canvas itemconfigure $id -outline [random_color]
}
}
return
}
# Run a demonstration.
proc demo {} {
# Create a toplevel window with a canvas filling the contents.
set win .gradients
if { [winfo exists $win] } {
destroy $win
}
toplevel $win
set cvs [canvas $win.cvs -highlightthickness 0]
pack $cvs -fill both -expand yes
wm geometry $win 800x600
raise $win
# Fill the bottom of the screen with a striped green fade.
gradient draw $cvs footer 0 0 10 10 vertical white darkgreen -dash {3 1}
bind $cvs <Configure> {
gradient resize %W footer 0 [expr {%h-300}] %w 300
}
# Draw a strip of rainbow.
set width 100
set colors {white red orange yellow green blue purple violet white}
for {set i 1} {$i < [llength $colors]} {incr i} {
set c1 [lindex $colors $i-1]
set c2 [lindex $colors $i]
gradient draw $cvs "wave $i" [expr {$width*($i-1)}] 0 $width 50 horizontal $c1 $c2
}
# Draw some balls with diameters of 100.
set colors {green red yellow blue orange white}
for {set i 0} {$i < 6} {incr i} {
gradient draw $cvs "beachball $i" 0 55 100 100 arc [lindex $colors $i] #333 -start [expr {$i*60}] -extent 60
}
set colors {cyan pink orange firebrick}
for {set i 0} {$i < [llength $colors]} {incr i} {
gradient draw $cvs "quadball $i" 110 55 100 100 arc [lindex $colors $i] #eee -start [expr {$i*90}] -extent 90
}
gradient draw $cvs ball1 220 55 100 100 circular #bbbbbb white
gradient draw $cvs ball2 330 55 100 100 circular #888 #eee
gradient draw $cvs ball3 440 55 100 100 circular black grey
gradient draw $cvs ball4 550 55 100 100 circular black #555
gradient draw $cvs ball5 660 55 100 100 circular cyan black
# Draw some boxes.
gradient draw $cvs box1 0 160 150 100 horizontal white firebrick
gradient draw $cvs box2 150 160 200 100 central black firebrick
gradient draw $cvs box3 350 160 100 100 horizontal firebrick black
gradient draw $cvs box4 450 160 200 100 central firebrick black
gradient draw $cvs box5 650 160 150 100 horizontal black white
# Display some control buttons.
frame $cvs.f
button $cvs.f.b1 -text "Redraw with random gradient colors" -command [list [namespace current]::randomize_all_gradient_colors $cvs]
button $cvs.f.b2 -text "Relaunch demo with default colors" -command [list [namespace current]::demo]
button $cvs.f.b3 -text "Chaos" -command [list [namespace current]::randomize_all_canvas_item_colors $cvs]
pack $cvs.f.b1 $cvs.f.b2 $cvs.f.b3 -fill x
$cvs create window 400 400 -window $cvs.f
return
}
}
gradient demo'Tcl & Tk > 팁 (Tip)' 카테고리의 다른 글
