Tcl3D 1.0.1

홈페이지: https://www.tcl3d.org/



Tcl3D는 Tcl 스크립팅 수준에서 OpenGL 및 기타 3D 라이브러리의 3D 기능을 제공합니다. 이는 SWIG의 도움으로 라이브러리를 래핑하여 수행됩니다.

Tcl3D - Doing 3D with Tcl

Tcl3D offers the 3D functionality of OpenGL and other 3D libraries at the Tcl scripting level. This is accomplished by wrapping the libraries with the help of SWIG.

The Tcl3D package consists of the following building blocks:

Tcl3D basic modules:

• tcl3dOgl Enhanced Togl widget, a Tk widget for OpenGL content. Wrapper for OpenGL functionality based on the GLEW library. Utility library (math, shapes, stop watch, ..).
• tcl3dGauges A pure Tcl package for displaying gauges.
• tcl3dGl2ps Wrapper for the OpenGL To Postscript library.

Tcl3D optional modules:

• tcl3dFTGL Wrapper for the OpenGL Font Rendering Library.
• tcl3dOsg Wrapper for the OpenSceneGraph library.
• tcl3dSDL Wrapper for the Simple DirectMedia Library.

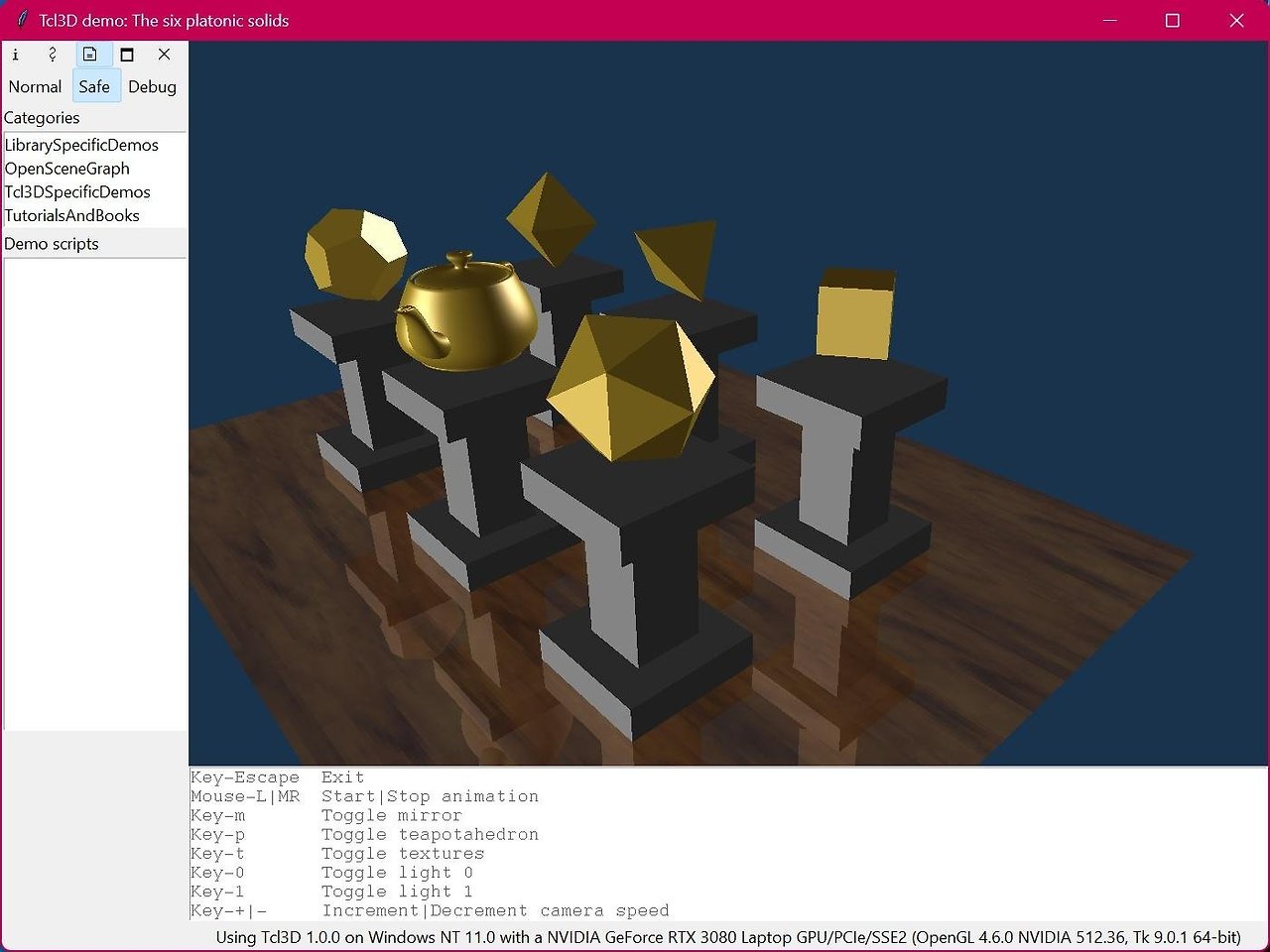

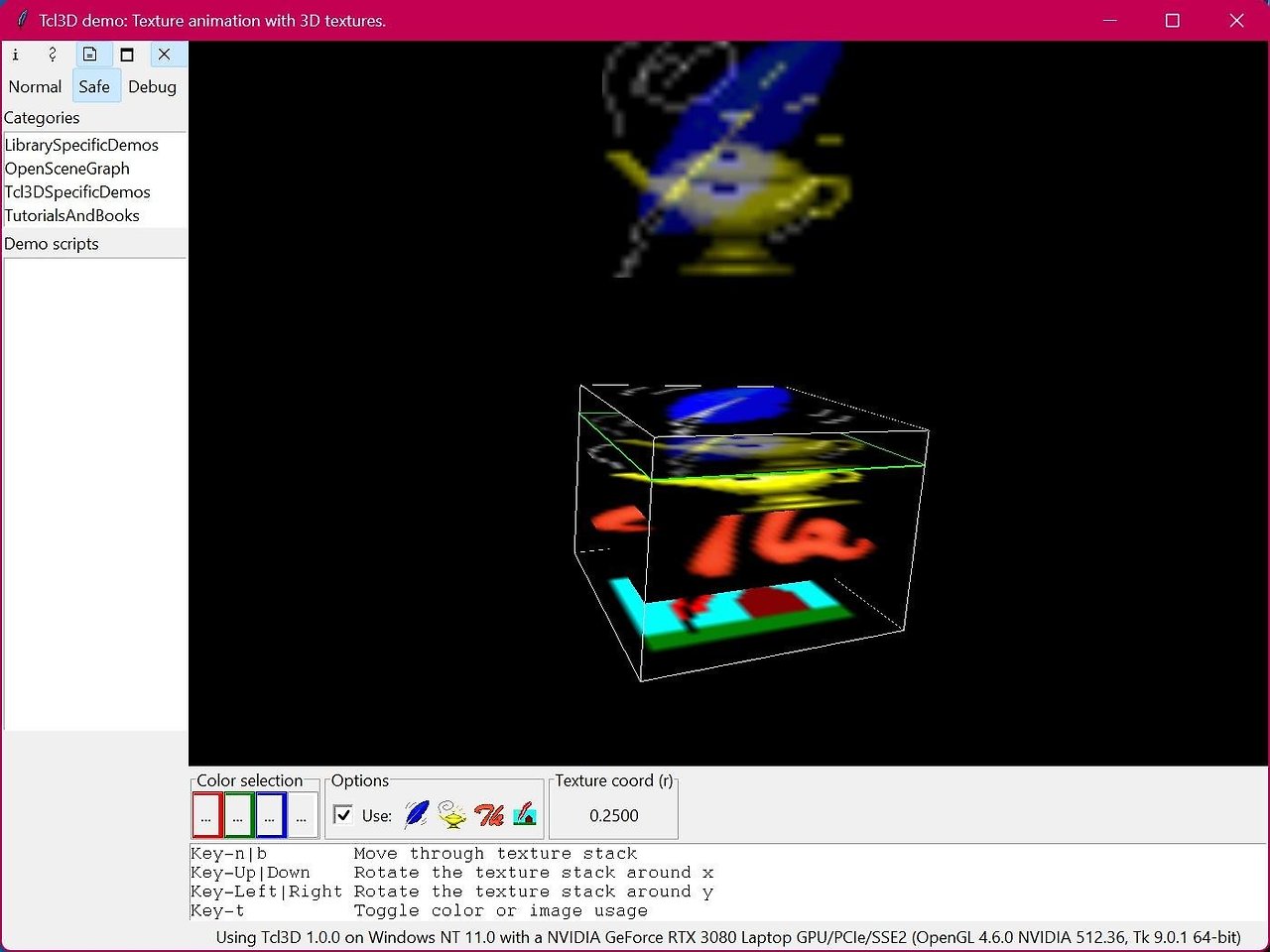

Tcl3D contains lots of demonstration programs.

Tcl3D sources and demos are available at https://www.tcl3d.org/. For a detailed description of Tcl3D and it's installation, see chapter 1 of the Tcl3D manual.

The Tcl3D wrapper source code is copyrighted by Paul Obermeier and distributed under the 3-clause BSD license. The wrapped libraries may have differing licensing conditions, see https://www.tcl3d.org/documentation.html#modules for details.

Please send questions, bug reports or any other feedback about Tcl3D to info@tcl3d.org or visit the Tcl3D related pages on the Wiki:

https://wiki.tcl-lang.org/page/Tcl3D (Tcl3D)
https://wiki.tcl-lang.org/page/Tcl3D+Discussion (Tcl3D Discussion)

tcl3d-1.0.1.7z

1.69MB

tcl3d-demos-1.0.1.7z.001

19.53MB

tcl3d-demos-1.0.1.7z.002

9.86MB

Tcl3D-Manual-1.0.1.pdf

1.99MB
